Quatro Plus

Zonepro’s Quatro Plus has been specifically developed for use in Film & Television industries as well as extended reality applications. The XR panel offers trusted reliable performance with sophisticat-ed & high-speed components such as wide color gamut LEDs,high speed & high grayscale IC drivers and broadcast standard processing.

Frequency：max 236Hz
Grayscale:max 16 bits
Refresh Rate:max 7680Hz

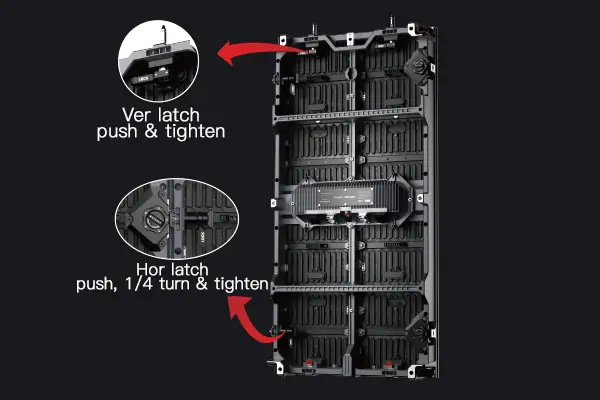

A Solution of Lightweight ,High Intensity & Fast Installing

The Magnesium panel stays at a relatively low weight 12kg each. The chassis has been strength tested to staggering 1.9 tons. This is equal to hanging over 158m, the height of a 42-story sky-scraper. Using a safety factor of 6, 26m of Quatro can safely hang vertically & seamlessly. Quatro’s smart latch & self-assisted system allow one person to complete a full assembling work.

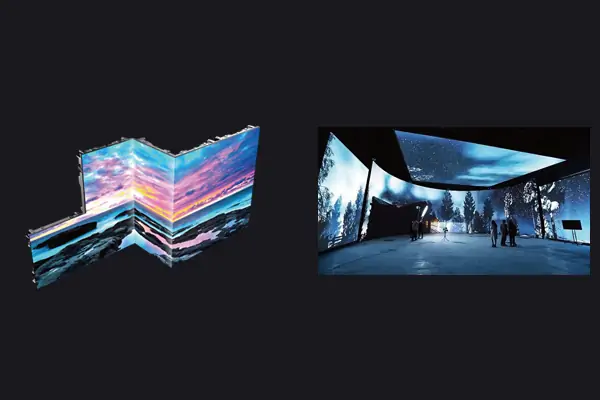

Creative Applications

Quatro allows you to realize many creative solutions.In addition to standard designs, Quatro panels can curve,be ceiling mounted, at right angles, let your imagination be the limitation.

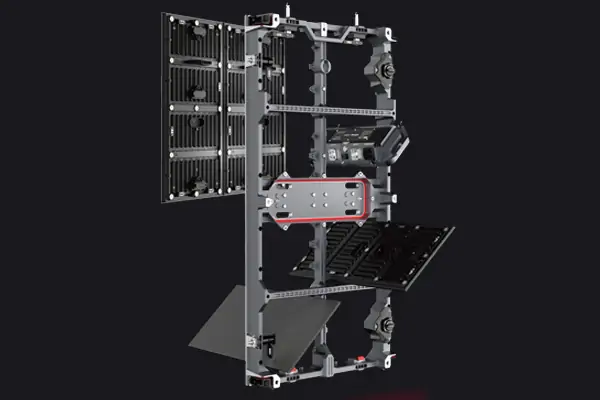

Modular & Universal Parts

All parts front and rear serviceable.
Smart Fly & Stack Bar

Sideways adjustable rigging clamp assists with truss webbing.
Ease Truss

Available for ground stack

Specs

Pixel Pitch(mm)	QT1.5	QT2.6	QT2.9	QT3.4
LED Configuration	SMD1212(GOB)	SMD1515	SMD2020	SMD2020
Pixel Density(pixels/㎡ )	40,9600	147,456	112,896	82, 944
Brightness(cd/㎡)	≥1000
Module Size(W x H mm)	250x250	250x500

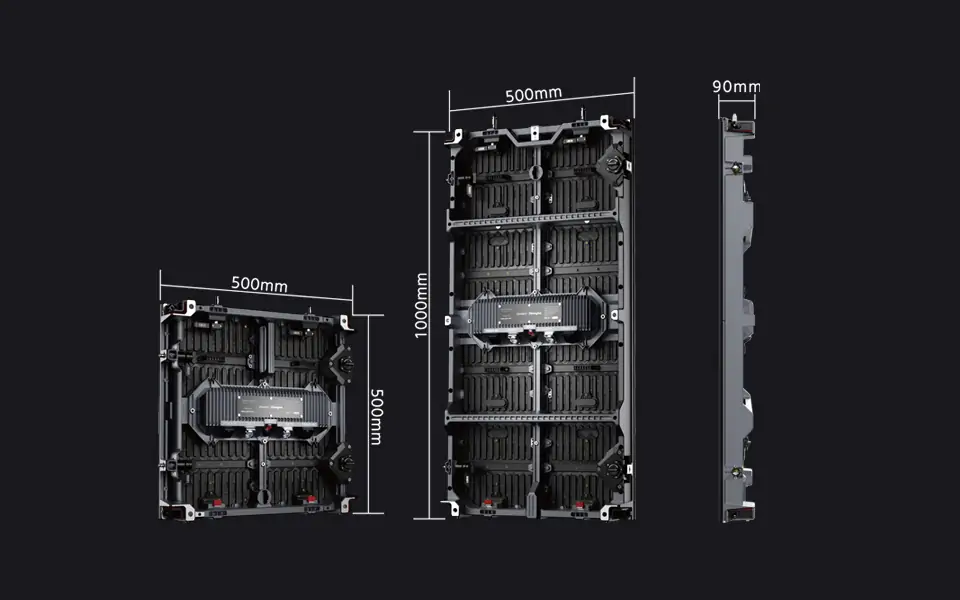

Panel Size (W x H mm)	500x500	500x1000
Module Resolution (pixels)	320x320	192×384	168×336	144×288
Panel Weight (kg/pc)	9kg	12kg
Cabinet Materials	Diecast Magnesium
Curveable	-6°, -3°, 0°	-6°, -3°, 0°,+3°,+6°
Power Consumption(Max/Avg) W/㎡	420 /140
Ingress Progress	IP30
Refresh Rate	7680Hz
Gray Scale	≤16 bits
Frame Frequency	236Hz
Scan Ratio	1/20	1/16	1/14	1/12
