mediaCaptain-High Brightness, Low Power Consumption

mediaCaptain is zonePro’s new generation of hight brightness & low power consumpttion outdoor fixed led screen.Featured with bright LEDs, it can reach max 8500 nits brightness while staying at low power consumption of max 450w. The led screen panel weights only 28kg/㎡ and waterproof level is IP66. It supports both front and rear maintenance and has very good heat dissipation performance. It can meets the needs of various outdoor fixed installation led screen applications.

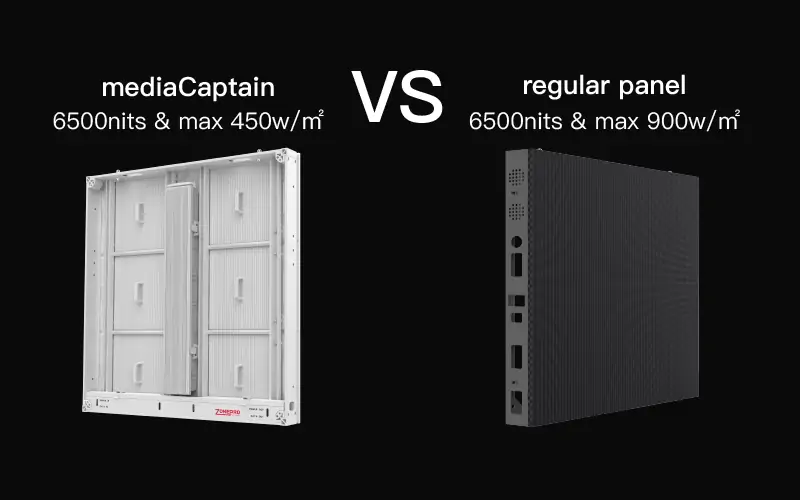

Energy Saving, 50% against Regular ,Panel 32% Remaining Power Capacity

The panel adopts electronic circuit design of common anode with two different (best) power supply to red LED and green & blue LED, and good materials used such as highly effcient & bright LED and highly efficient PSU, the panel performs 6500 nit with max 450w/㎡, besides, there is 32% remaining power capacity in each panel.

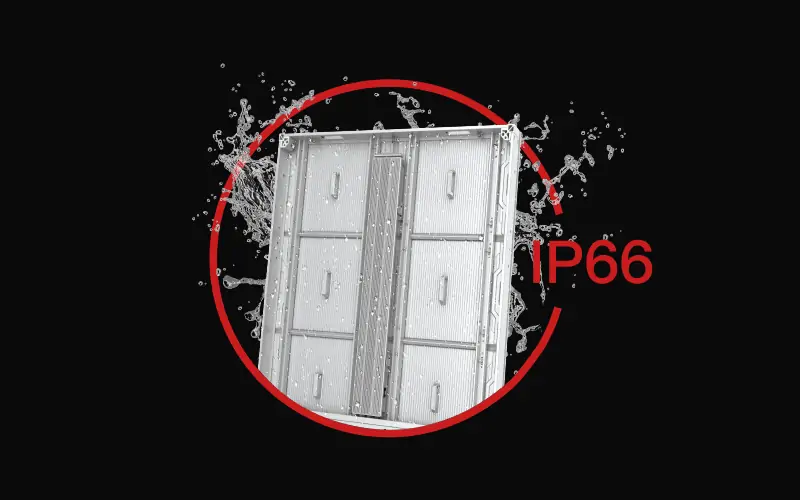

Super Waterproof

The led screen panel waterproof level is IP66/IP66.

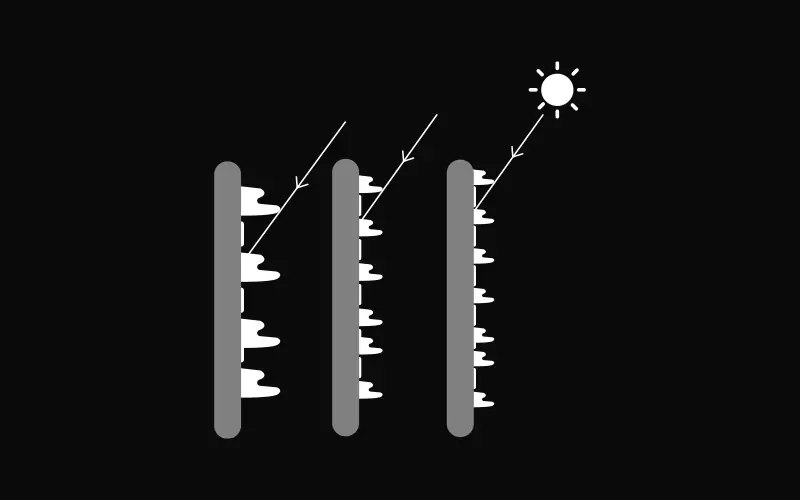

High Contrast, High Brightness

The led screen panel uses bright LEDs that bring up to 8500nits brightness, besides, there are long louvers on the module mask that is made very black, which contributes to clear and bright images on screen for outdoor use.

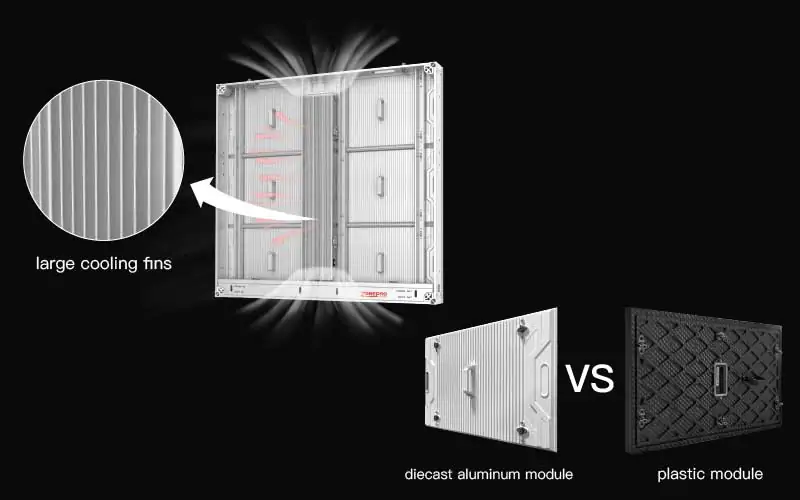

Super Heat Dissipation

The led screen uses very good components, besides, we structurally design the best heat dissipation for the modules and PSU e.g, the module shell and powerbox are made of diecast aluminum with large heat fins.

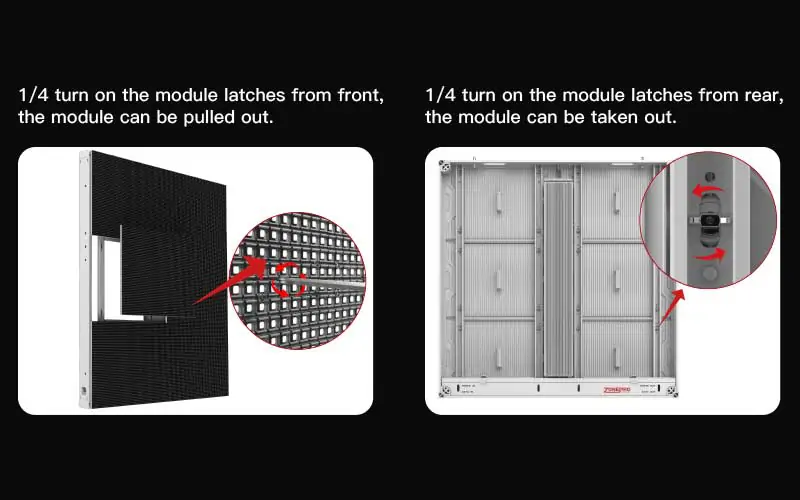

Fast Maintenance, Front & Back Access

The led screen panel support fast front and rear mainytenance.

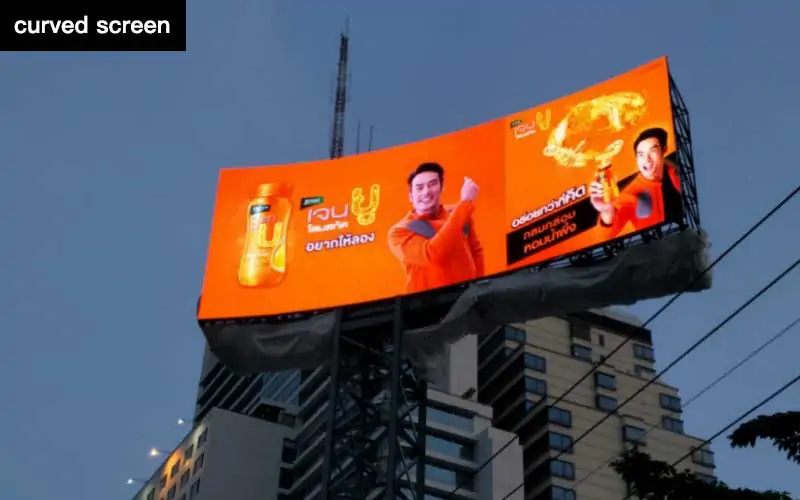

Applied to Various & Creative Installations

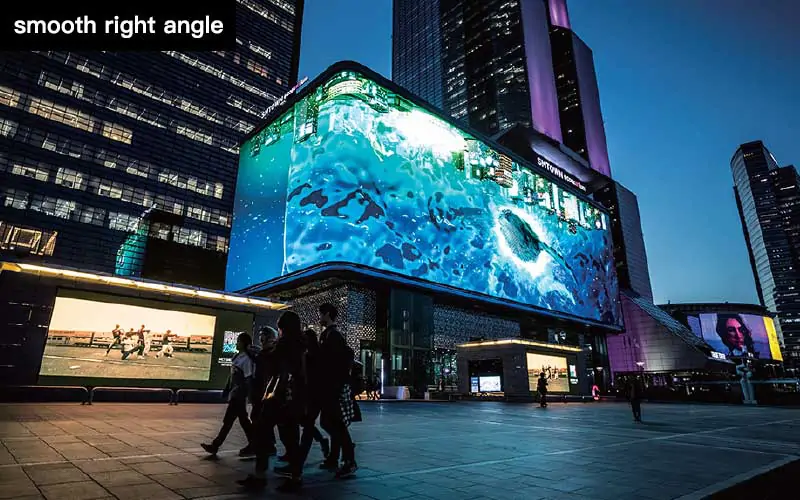

Applied to Various & Creative Installations

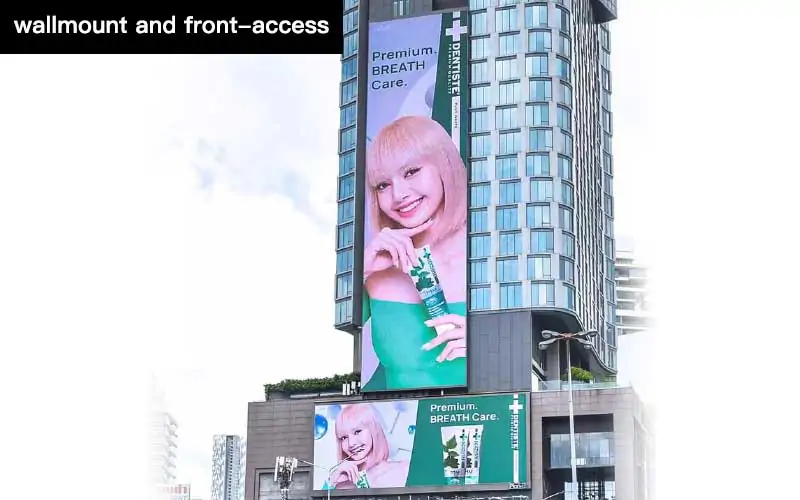

Applied to Various & Creative Installations

Specs

ITEM	P5	P6.67	P8	P10
LED	SMD1921	SMD2727	SMD2727	SMD2727
Pixel Pitch (mm)	5	6.67	8	10
Module Resolution	96x64	72x48	60x40	48x32
Module Size (W x H mm)	480x320	480x320	480x320	480x320
Pixel Density (pixels/m²)	40,000	22,500	15,625	10,000

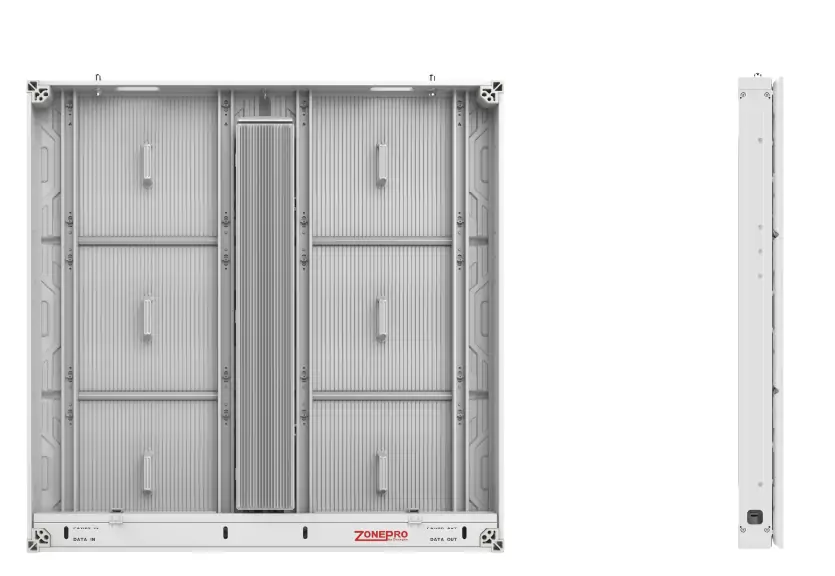

Cabinet Size (WxH mm)	960x960	960x960	960x960	960x960
Cabinet Weight (kg/m²)	28	28	28	28
Gray Scale (bits)	≥14	≥14	≥14	≥14
Cabinet Material	Diecast Aluminum	Diecast Aluminum	Diecast Aluminum	Diecast Aluminum
Ingress Protection	IP66/IP66	IP66/IP66	IP66/IP66	IP66/IP66
Maintenance	Front / Rear	Front / Rear	Front / Rear	Front / Rear
Refresh Rate (Hz)	3840Hz	3840Hz	3840Hz	3840Hz
Brightness (nits)	5,000-7,000	6,000-8,500	6,500-8,500	6,500-8,500
Contrast	8,000 : 1	9,000 : 1	10,000 : 1	11,000 : 1
Power Consumption (W/m²)	650 / 215	450 / 150	450 / 150	450 / 150
