Transformer - Moving Head Poster

Transformer is ZonePro’s new LED Kiosk with both single or double sides. It can rotate 360° clockwise or counter clockwise, or rotate back and forth in a set factor. Contents on screens is conveyed to audiences at any view angles and it improves advertising effectiveness.

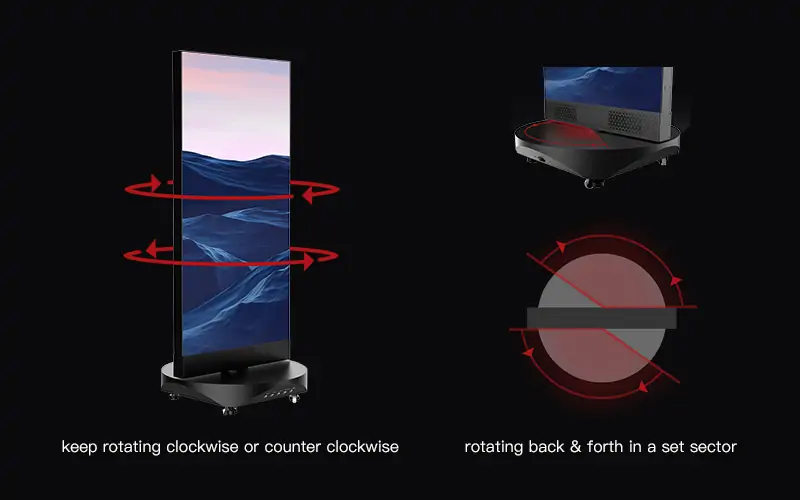

Double or Single-sided LED & Settable Rotation

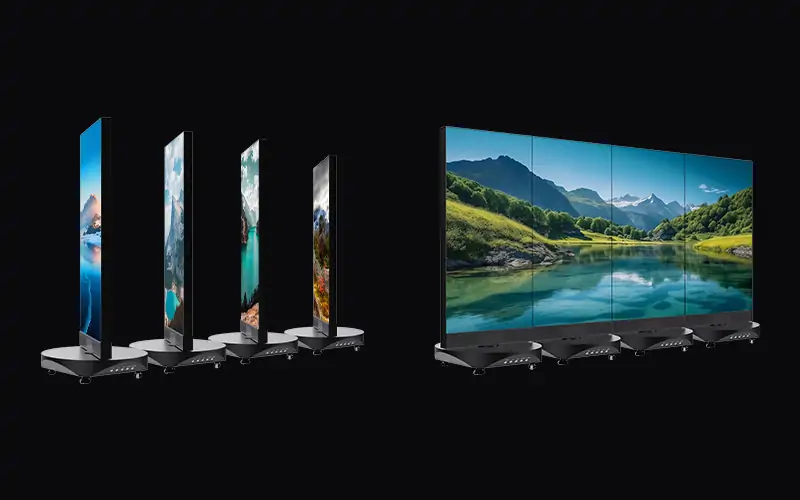

Individual or Team-working: Settable

When lining up to one screen or when rotating apart, this screen displays both a complete (video) or several images (videos)

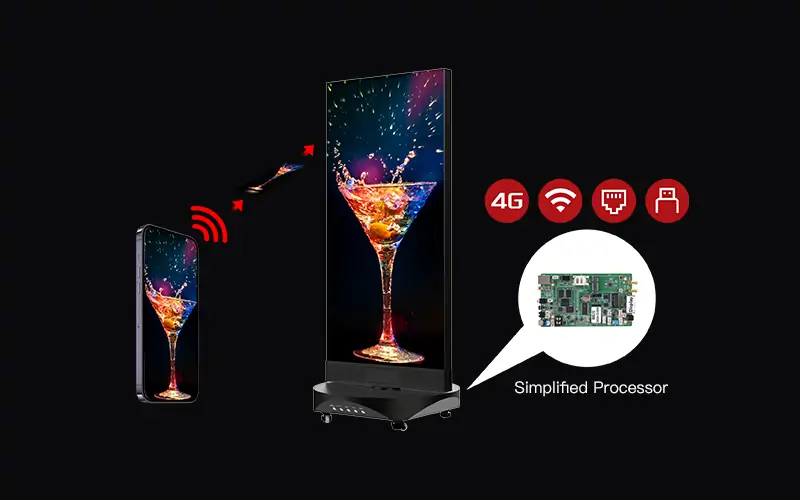

Easy Management for A Close Distance

Each is equipped with a media player (combination of single-chip & simplified processor) with accesses of 4G / 5G, WiFi, internet, USB, HDMI... A smart phone can connect to the WiFi with built-in hotspot of the media player and can manage it via an APP.

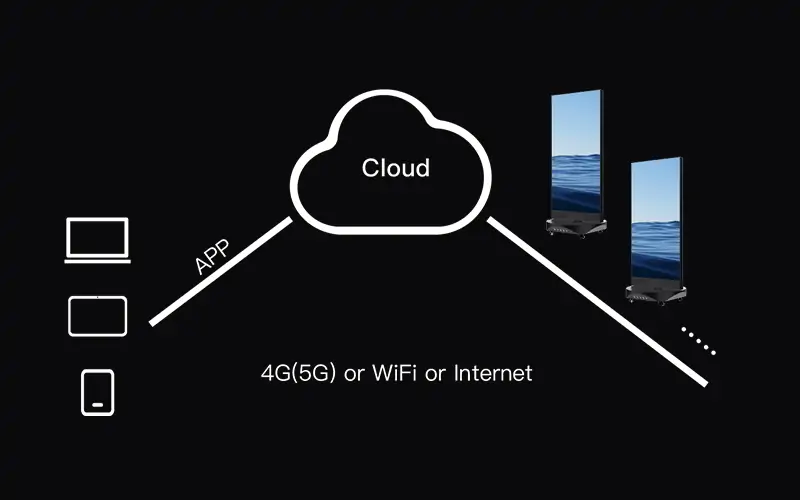

Smart & Efficient Management on Multiple Pieces

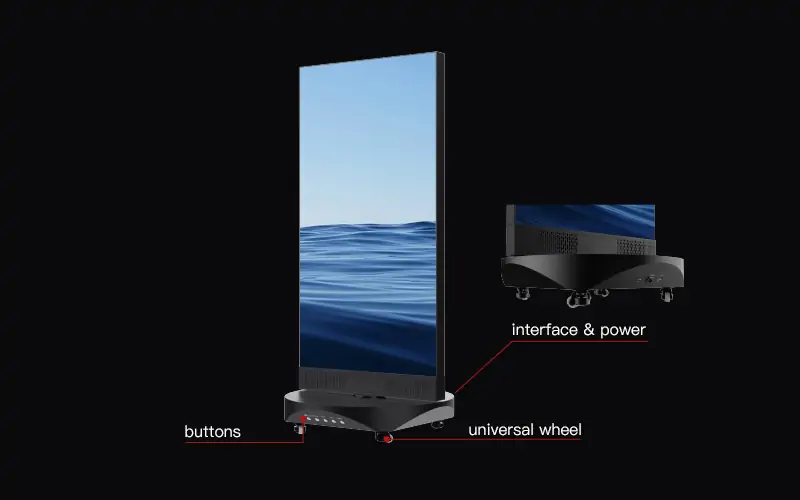

User-friendly Design

Specs

Pixel Pitch (mm)	1.56	1.89	2.5	2.604	2.97	3.91
LED Configuration	SMD1212	SMD1515	SMD2020	SMD2020	SMD2020	SMD2020
Pixel Density (pixels/㎡)	409,600	278,784	160,000	147,456	112,896	65,536
Brightness (cd/㎡)	700-800	700-800	700-800	700-800	700-800	700-800
Module Size (W x H mm)	250x250
Resolution	160x160	132x132	100x100	96x96	84x84	64x64
Panel Size (W x H mm)	10002000mm or customizable ( W250n x H250*n )
Panel Weight (kg/㎡)	130kg
Cabinet Material	Aluminum
Power Consump (one side)	280-1300w/㎡
Power Consump (two sides)	560-2000w/㎡
Refresh Rate	3840Hz
