Fine Pitch Panel-ZonePro LED

videoPad (16:9)

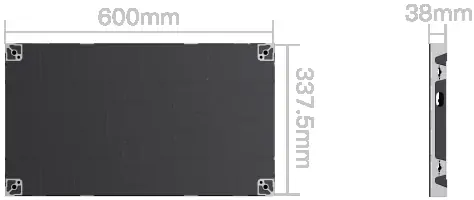

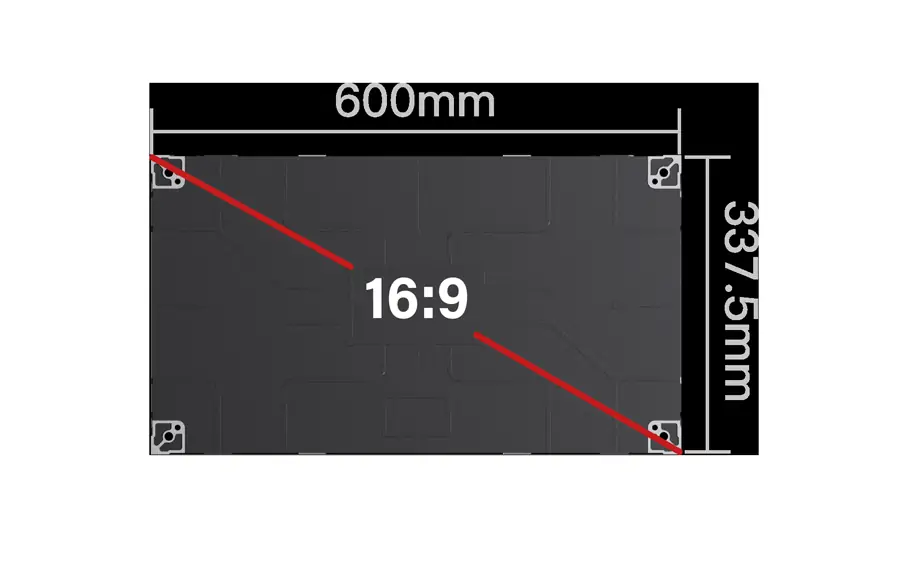

videoPad is a fine-pitch 16:9 panel.Its panel size is 600*337.5mm that has a 16:9 aspect ratio, more flexible to fit 2K,4K or 8K video wall.It weights only 4.4 kg/pcs and thickness is only 38mm.videoPad can bring unparalleled visual experience for your indoor led video wall.

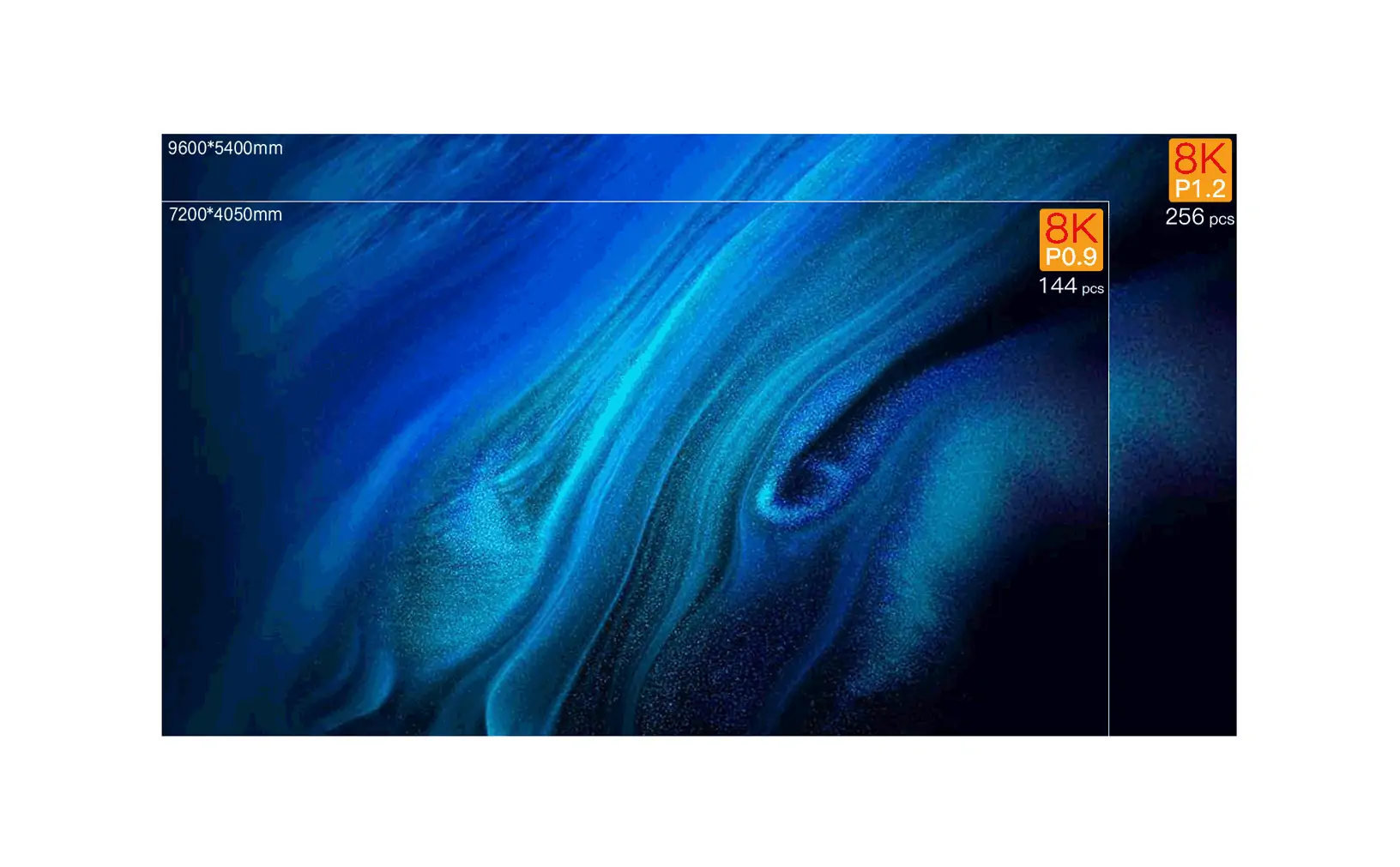

8K (min. 144 panels)

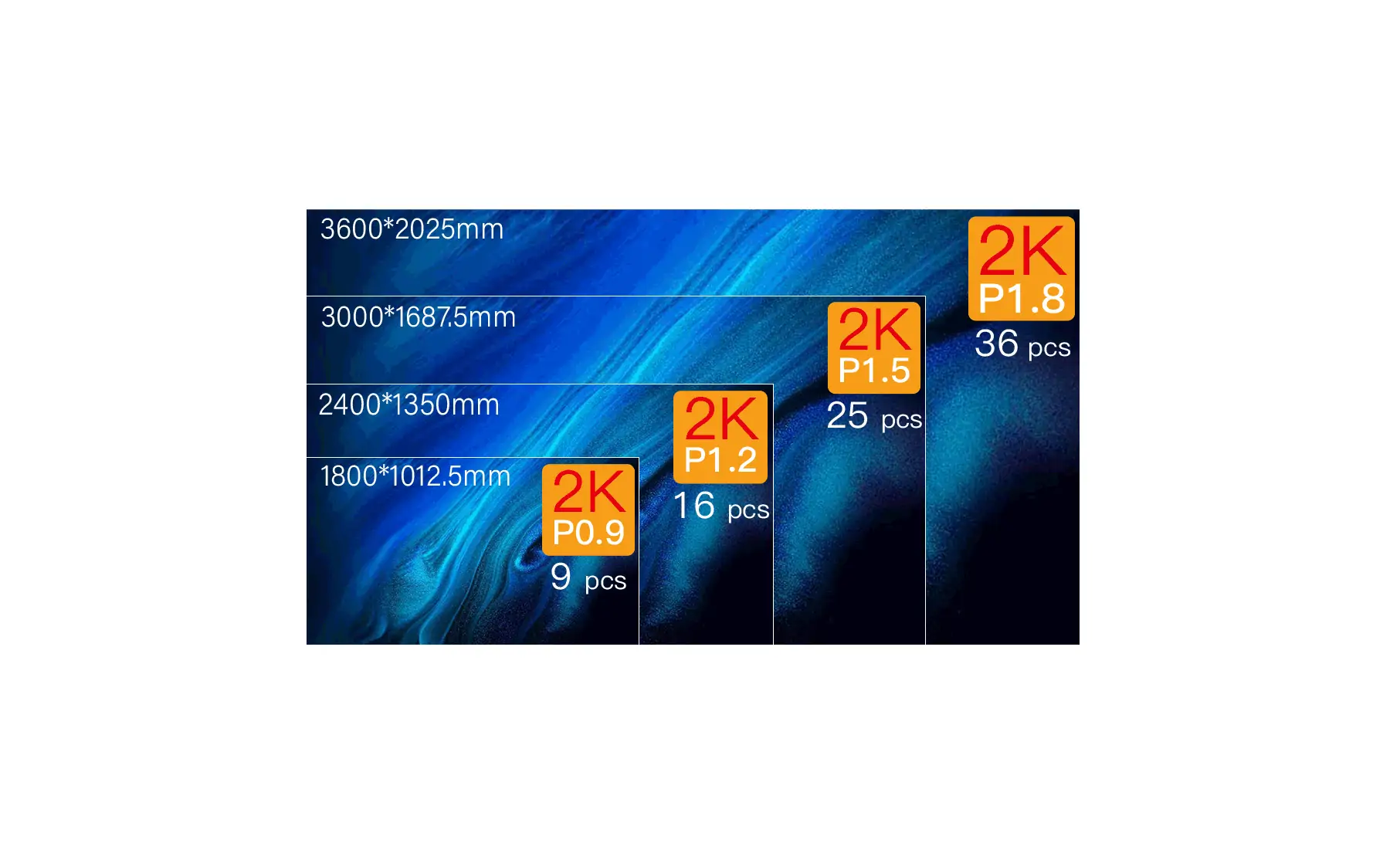

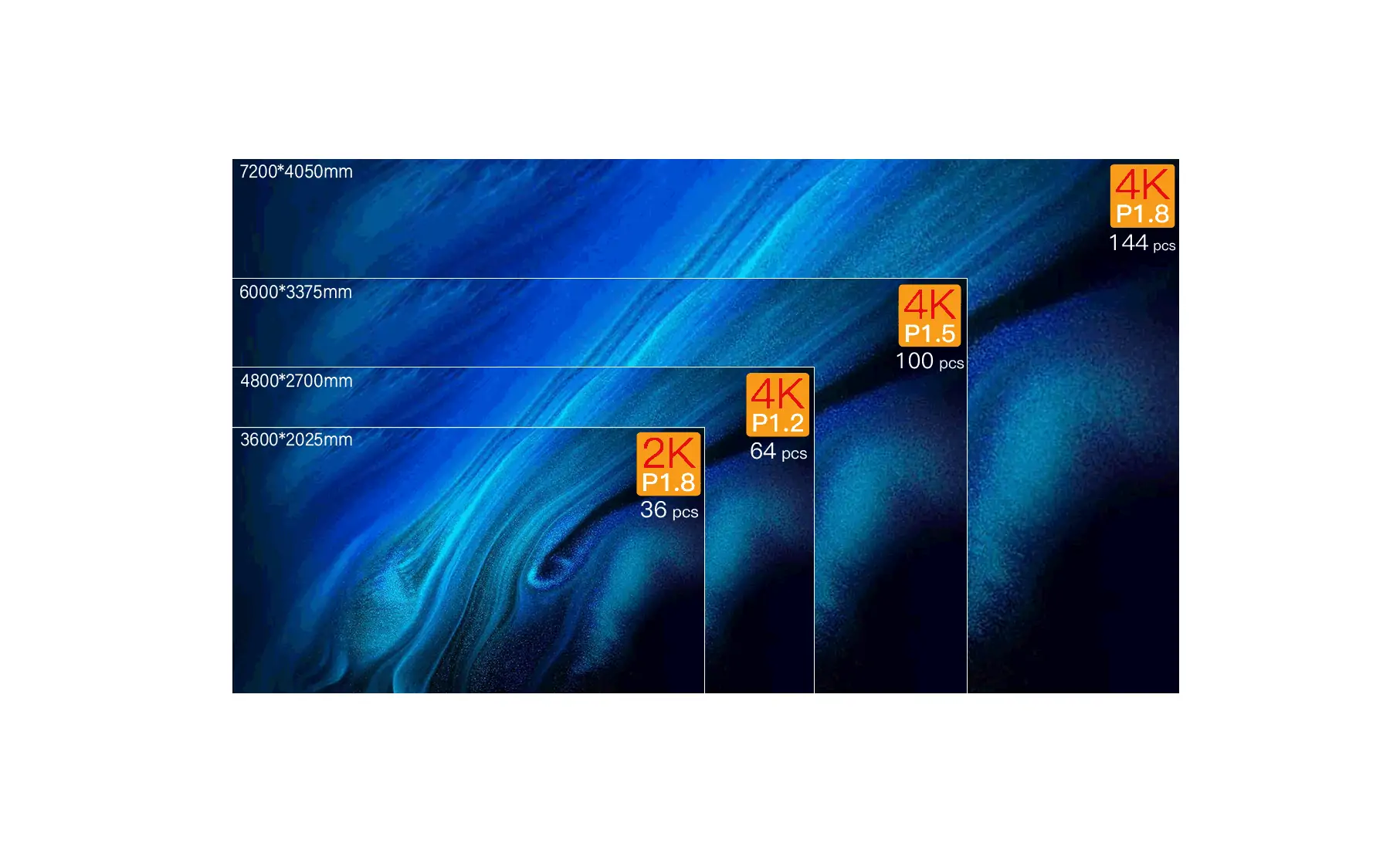

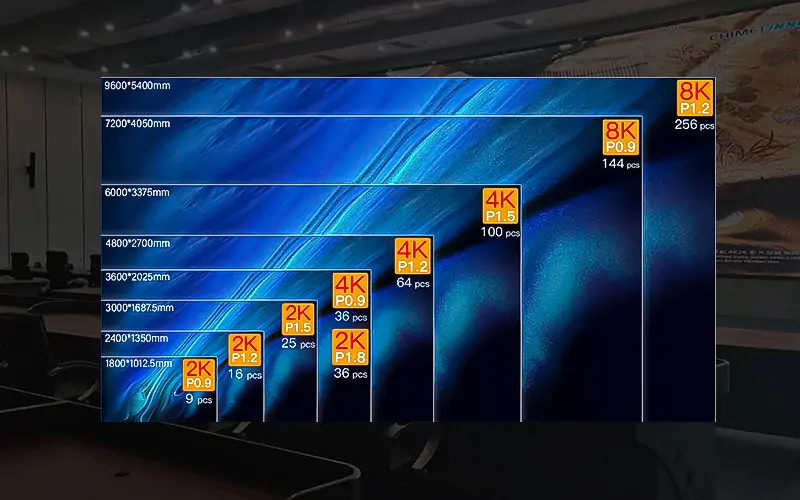

Fine Pitch & 16:9 Panel Size,Perfect Fitting 2K, 4K or 8K Video Wall

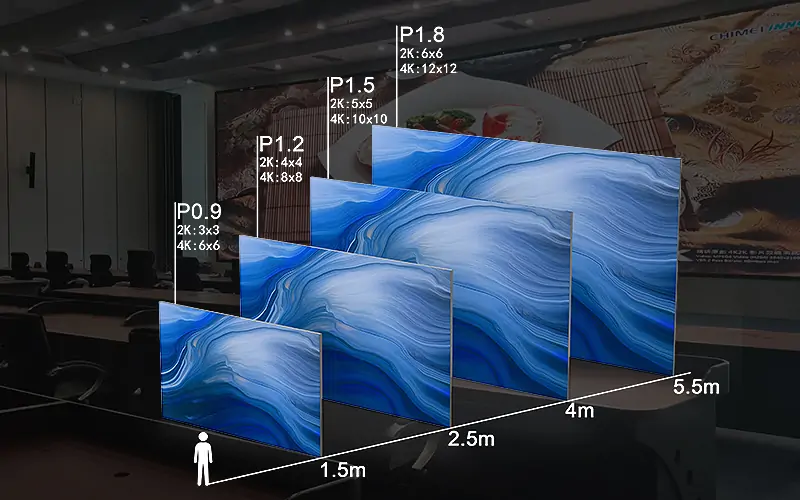

Suggested Viewing Distance

Multiple Installation Solution

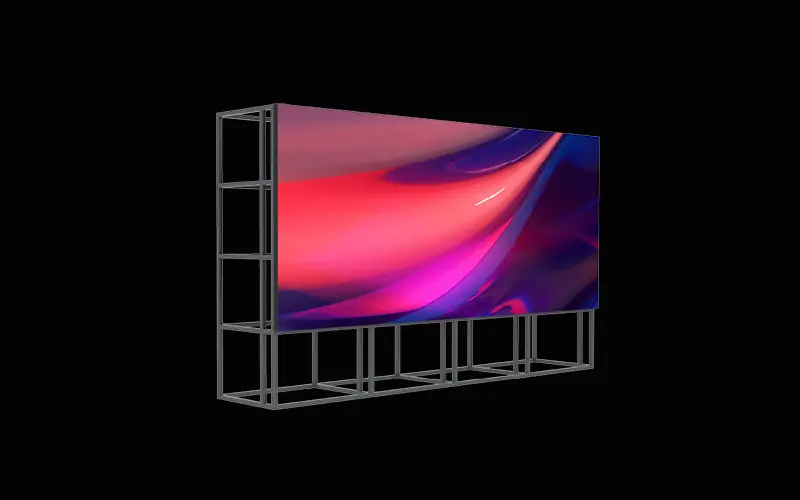

fixed onto framework via joint plate

Multiple Installation Solution

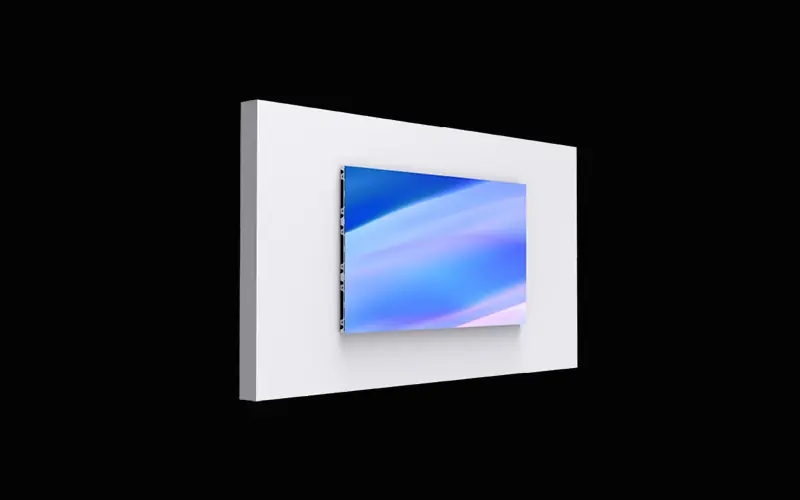

wallmount (direct or bracket assisted)

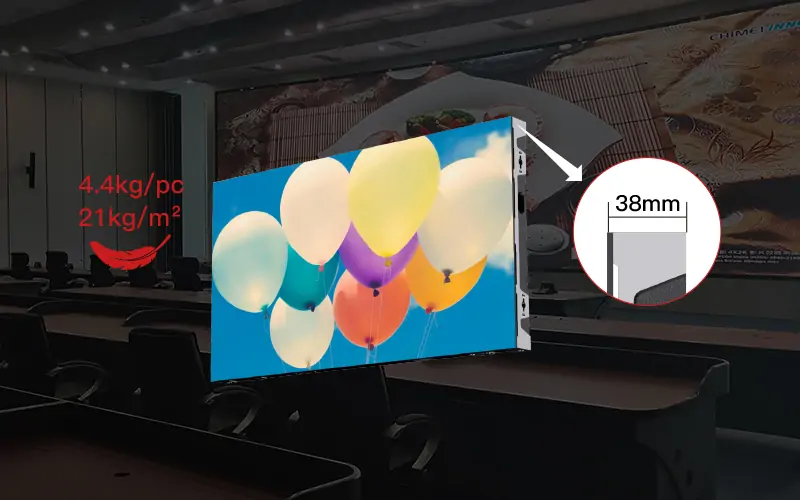

Lightweight and Thin

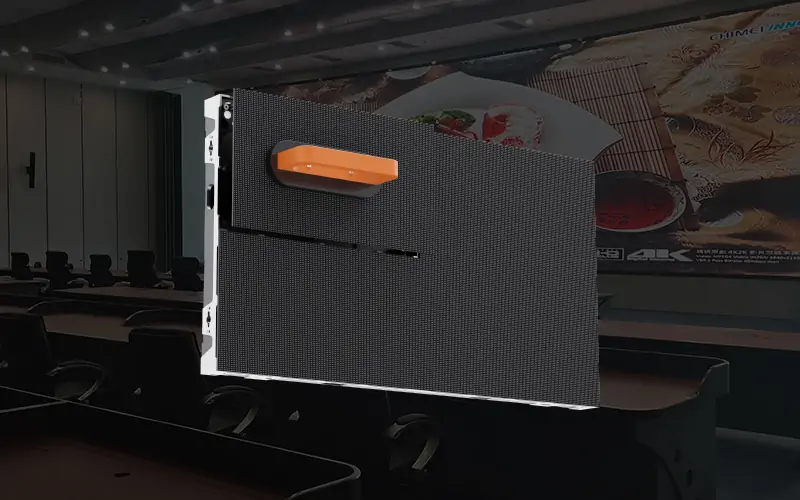

All Parts are Front Accessible

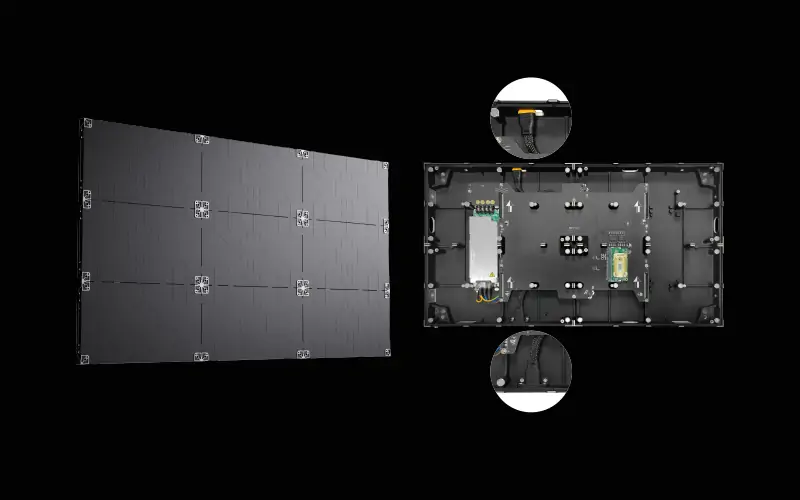

Clean Backside, no Cables and Connectors Shown

High Grayscale

Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 14 bits or even 16 bits, then the screen is able to perform as rich details as what the content has.

High Refresh Rate

Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 3840Hz, then the screen is able to perform best smooth

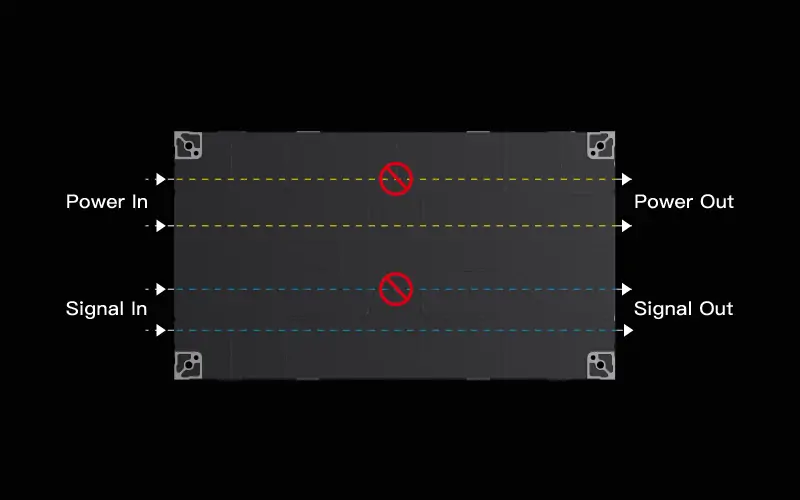

Dual Backup (optional)

Power and data redundancy to provide highly reliability.

Specs

ITEM	COB					SMD
Pixel Pitch (mm)	P0.78	0.9375	1.25	1.5625	1.875	1.25	1.5625	1.875
Module Resolution	192x216	160x180	120x135	96*108	80x90	240x135	192x108	160x90
Module Size (WxH mm)	150x168.75	150x168.75	150x168.75	150x168.75	150x168.75	300x168.75	300x168.75	300x168.75
Pixel Density (pixels/m²)	1,638,400	1,137,777	640,000	409,600	284,445	640,000	409,600	284,445
Cabinet Size (WxH mm)	600x337.5x30	600x337.5x30	600337.530	600337.530	600337.530	600x337.5x30	600x337.5x30	600x337.5x30
Cabinet Weight (kg/pc)	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4
Cabinet Material	Die cast aluminum					Die cast aluminum
Ingress Protection	IP50/IP30	IP50/IP30	IP50/IP30	IP50/IP30	IP50/IP30	IP30/IP30	IP30/IP30	IP30/IP30
Maintenance	Front	Front	Front	Front	Front	Front	Front	Front
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840	3840	3840
Brightness (nits)	500-600	500-600	500-600	500-600	500-600	500-700	500-700	500-700
View Angle (H./V.)	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°	160° / 160°
Contrast Ratio	6000:1	6000:1	6000:1	6000:1	6000:1	6000:1	6000:1	6000:1
Scan Mode	1/64	1/40	1/60	1/48	1/43	1/45	1/54	1/45
Max. Power Consumption	290W/m²	275W/m²	275W/m²	275W/m²	275W/m²	500W/m²	500W/m²	500W/m²
Avg. Power Consumption	95W/m²	92W/m²	95W/m²	95W/m²	95W/m²	170W/m²	170W/m²	170W/m²
